When it comes to maximizing a racking systems efficiency and cost considerations, building taller racking to squeeze more density from your footprint can bring unique challenges. Just adding more beam levels is an enticing solution to fitting more product into the same space; But it's essential to consider a rack system's depth before you build up...

In this article, we will explore the importance of Height-to-Depth Ratio when designing a racking system. By the end of this article, you should understand how just building taller without considering the overall footprint of your rack can have a significant impact on the rack's stability; protecting you from costly, dangerous consequences down the road.

Definitions & Basic Principles

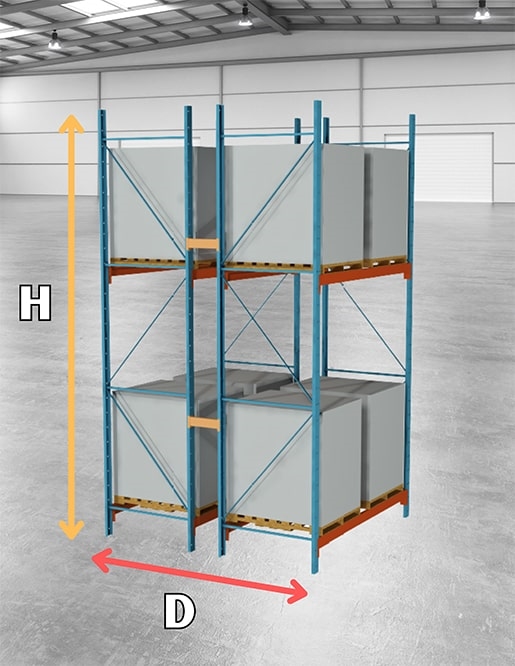

The Height to Depth (H:D) ratio is a fundamental engineering metric used to evaluate the stability of a warehouse racking system. Simply calculated by dividing the total height of the rack by its front-to-back depth, this ratio serves as a critical indicator of a rack system's ability to resist tipping or buckling under load. The deeper the base of the rack relative to its height, the greater the resistance to overturning forces as the base acts as a stablizing lever. Conversely, taller racks with shallow depth inherently raise the system's center of gravity, amplifying the risk of instability.

All of this is rooted in principles of structural mechanics, particularly the concept of moment of resistance. A larger base depth increases the moment arm (the horizontal distance from the rack's pivot point) to the line of action of external forces such as shifting loads on the rack, lateral loads from forklifts, impacts, or earthquakes. This extended lever arm counteracts overturning moments, ensuring the system remains balanced. Engineers also consider the center of gravity of both the rack and its stored loads. Taller racks elevate the combined center of gravity, increasing susceptability to lateral forces. By adhering to an optimal H:D ratio when designing a racking system, the center of gravity can remain low enough to prevent otherwise catastrophic failures.

Static & Dynamic Forces & Structural Stability

The stability of warehouse pallet racking hinges on its ability to withstand both static and dynamic forces. Static forces include the weight of stored products, while Dynamic forces include impacts from forklifts, seismic activity, and even vibrations from nearby machinery. A lower H:D ratio enhances stability by reducing the lever effect of lateral forces. For instance, a rack with a 4:1 ratio will inherently resist tipping better than one with an 8:1 ratio under identical load conditions.

Another critical mechanism is the distribution of stress across the rack’s components. Taller racks place greater bending stress on upright columns, especially at their base. If the depth is insufficient, these columns may deflect or deform over time, compromising structural integrity. Additionally, the connection points between beams and uprights must handle shear forces, which escalate with height. Modern rack designs often incorporate cross-bracing or reinforced base plates to mitigate these stresses. However, these enhancements cannot fully compensate for an inherently poor H/D ratio; the foundational geometry of the system remains paramount.

Industry Standards & Guidelines

Industry standards such as RMI/ANSI MH16.1 (Specification for the Design, Testing, and Utilization of Industrial Steel Storage Racks published by the Rack Manufacturers Institute) provide explicit guidelines for H/D ratios to ensure safety and compliance. These standards typically recommend a maximum H/D ratio of 6:1 for unbraced selective pallet racks. This threshold is based on extensive testing and historical data, balancing storage efficiency with structural reliability. Exceeding this ratio often requires rigorous engineering validation to simulate stress distribution and failure modes and often involves the installation of stabilizing accessories such as row spacers, base plates, and additional cross bracing.

Local regulations and environmental factors further influence these guidelines. In seismic zones, for example, building codes may mandate stricter ratios (e.g., 4:1) to account for lateral ground motion. Similarly, facilities with high forklift traffic or uneven load distributions may need to adopt conservative ratios to offset the risk of accidental impacts or asymmetrical weight placement. Compliance with these standards is not optional; regulatory bodies like OSHA (Occupational Safety and Health Administration) enforce penalties for violations, including fines or operational shutdowns. Engineers abroad must consider international variations, such as European EN 15512 standards, which emphasize similar principles but may differ in testing protocols. For the designer of your racking system, safety, stability, and reliability should be the #1 priority above all else!

Mitigation Strategies

To address high H:D ratios, engineers often employee a combindation of design modifications and operational controls:

• Row Spacers can be installed to connect rows of uprights together. Not only does this enforce even spacing between your racking, but connecting rows of racking in a back-to-back configuration greatly increases the overall stability of your racking.
• Pallet Rack Floor Anchors, also known as pallet rack base plates, are thick steel plates anchored into the floor which the uprights of your racking are bolted to. These base plates extend the system's effective depth and artifically lower the H:D ratio. In most cases, choice of anchors involves the consultation and approval of a professional engineer.
• Cross-Aisle Ties, also known as overhead ties, connect the topmost sections of uprights spanning across aisles and are rarely necessary in most racking systems with a H:D ratio under 8.
• Wall Ties Laterally anchor your rack uprights to the wall of your facility, providing improved stability on the horizontal axis.
• Strict Load-Management Protocols should be employed by warehouse management to enforce even weight distribution to avoid asymmetrical overloading of racking.
• Training Programs for Forklift Operators must highlight the importance of avoiding rack collisions and minimizing impact risks.
• Cutting Edge Networked Load Sensors are employed in the newest facilities to provide real-time data on rack stress, alerting operators before accidents occur.
• Regular Rack Inspections, as mandated by standards bodies such as OSHA, are intended to catch issues like beam deflection, anchor corrosion, or systemic and workflow problems before they escalate into disasters.

Breaking It Down

The Height-to-Depth ratio is not just a numerical guideline but a fundamental rule of physics and engineering. Its role in racking stability cannot be overstated; it dictates how forces interact with the structure, influences compliance outcomes, and ultimately safeguards lives and assets. With these principles in mind, you are better equipped to collaborate with your engineer and rack design team on creating a safe, reliable pallet racking system that meets your operational goals!
