 Used MacroAir HVLS Ceiling Fans
 Used MacroAir HVLS Ceiling FansUsed MacroAir HVLS Ceiling FansUsed MacroAir HVLS Ceiling FansUsed MacroAir HVLS Ceiling Fans

Used MacroAir HVLS Ceiling Fans

As Low As:

$3,450 Each! See Table Below

Request a Quote

  • Keep Employees Comfortable Year Round With HVLS Fans
  • Push hot air down in the winter & keep air circulating during the summer!
  • Spend less on energy bills vs. running AC in large, industrial environments
  • Four sizes to choose from for airflow that fits your facility
  • Large industrial ceiling fans

Record Breaking Heat Is Around The Corner!

Don't get left out in the heat! HVLS fans are the best choice for keeping large environments like warehouses comfortable year-round!
Request a Quote Now To Reserve Before They're Gone!

Hot Item!
Detailed Specifications
Specification 10' Unit 14' Unit 16' Unit 20' Unit
Pricing & Availability
Quantity In Stock (Updated 2/27/2025) 1 2 38 1
MSRP $6,550 ea. $6,575 ea. $6,600 ea. $6,650 ea.
ASI Price (Save 40%!) $3,450ea. $3,475 ea. $3,975 ea. $3,999 ea.
Airfoil
Airfoil Style 7.375" Extruded Anodized Aluminum Airfoil
# Of Airfoils 6
Performance
Max Speed 162 RPM 103 RPM 84 RPM 70 RPM
Recommended Spacing 60 ft 70 ft 85 ft 100 ft
Max Affected Area 6,000 sq ft 10,000 sq ft 12,000 sq ft 18,000 sq ft
Sound level dBA @ Max Speed 58 61
Hanging Requirements
Hanging Weight 178 lbs 195 lbs 202 lbs 217 lbs
Max Torque 24 ft-lb 43 ft-lb 40 ft-lb 88 ft-lb
Max Thrust In Reverse 6 lbs 14 lbs 15 lbs 31 lbs
Motor & Drive Train

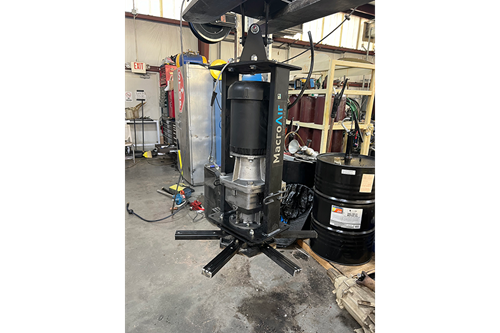

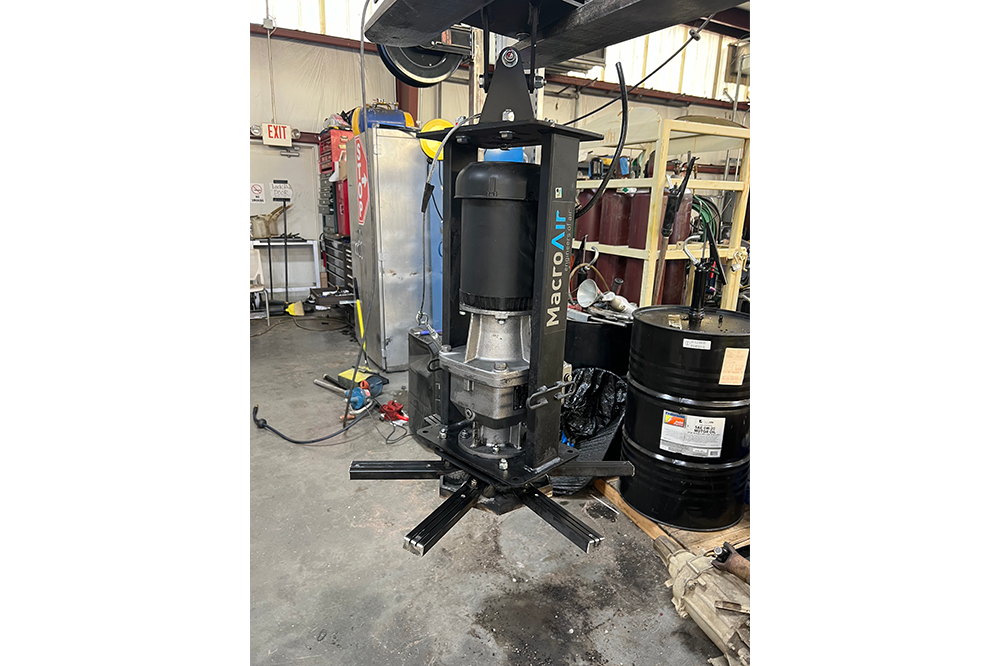

Motor Type AC Induction Motor w/ Sealed 2-Stage Helical Gear Box
Equivalent Horsepower 1.0 HP 1.5 HP
Power Requirements
Power Source Wired for 3Ø 480 VAC @ 50/60 Hz
Max Amp Draw 4.3A
Installation
Mounting Hardware Universal Mount Hardware
Extensions Optional Extensions Available From MFG (Not Included)
Ratings & Compliance
Fire & Sprinkler NFPA Compliant
Wash Down Duty Rating Fan Unit IP55 Rated, Controller Control Panel Not Rated
Certifications UL507

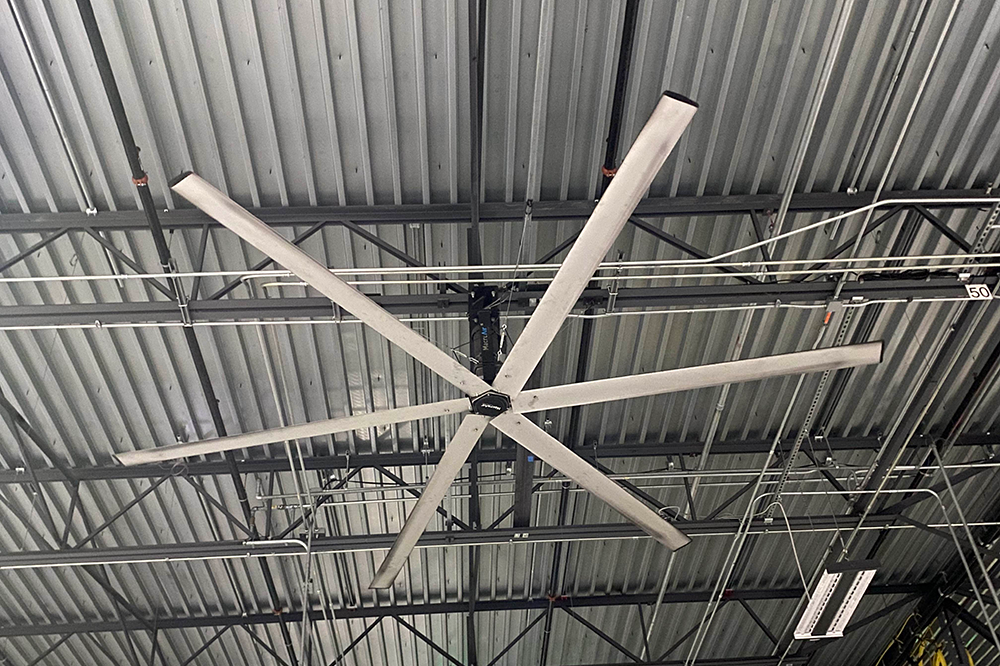

Used MacroAir HVLS Ceiling Fans, also known as large industrial ceiling fans, are designed to help regulate temperature in any industrial environment. The low-speed, high-volume design provides year-round temperature regulation that's quieter, more efficient, and lower-maintenance than alternative HVAC systems. Pushing high volumes of air at lower velocity than traditional fans, MacroAir HVLS Ceiling Fans gently push hot air back to the floor during the winter time, while keeping air circulating and more comfortable during the hot summer months. One all-season solution with no compressors or other HVAC components provides an affordable, energy-efficient alternative to Air Conditioning and reduces consumption of heating fuel.



Hot Item!

Summer Is Right Around The Corner! Don't let record-breaking heat sneak up on you!
Request a Quote Now To Reserve Before They're Gone!
