Used Southworth LS2 Series Lift Table for Sale
Used Southworth LS2 Series Lift Table for SaleUsed Southworth LS2 Backsaver Scissor Lift Table for SaleUsed Southworth Scissor Lift Table for SaleUsed Southworth LS2-36 Backsaver Scissor Lift Table for Sale

Purchase With Confidence!

  • These Units Are Pre-Inspected & Ready-to-Ship Quick!
  • Fully Serviced By Our In-House Lift Technician
  • Lift Equipment Is Backed By The 30-Day ASI Guarantee
  • Ask about having your Backsaver repainted to a factory finish!

Hot Item!

This is a very popular item and quantities are limited!
Two Units Remain In Stock!
Request a Quote Now To Reserve Before They're Gone!

Hot Item!

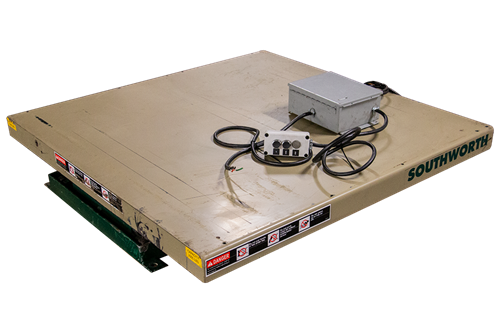

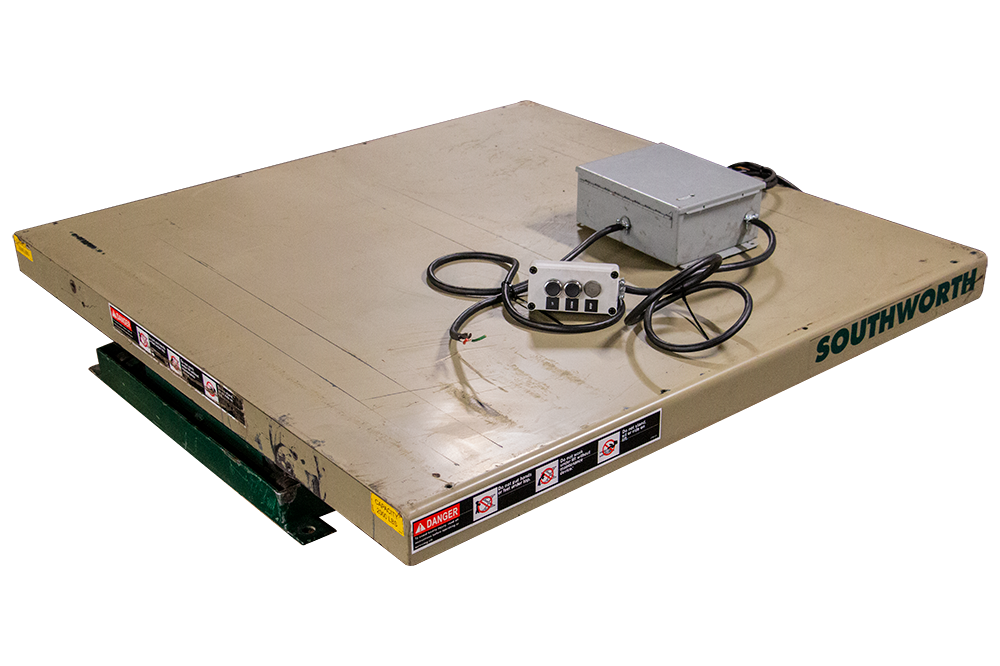

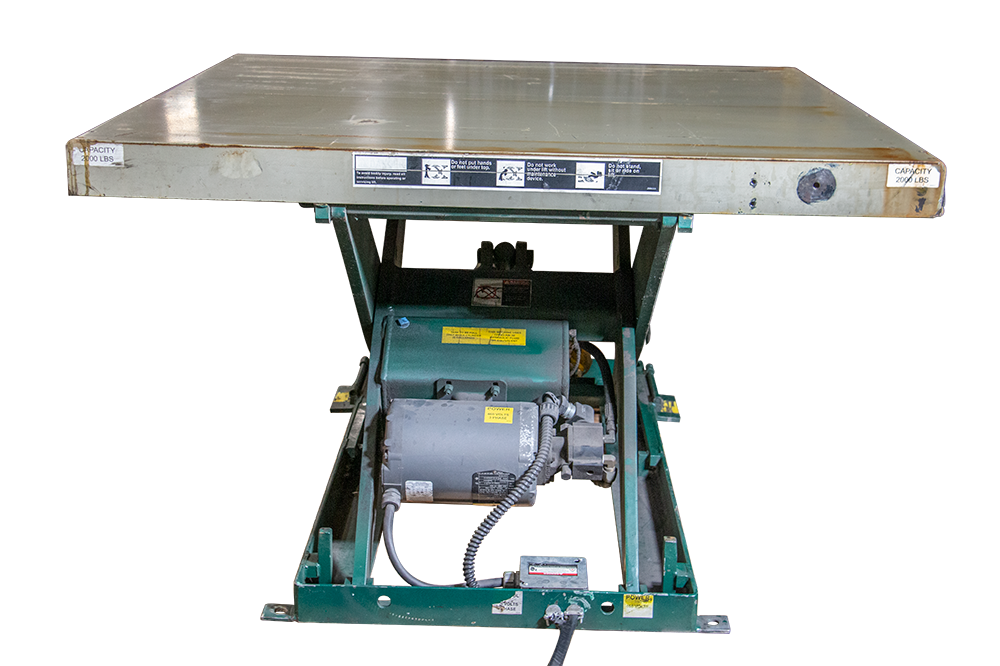

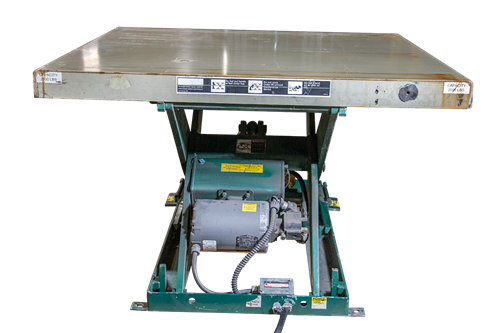

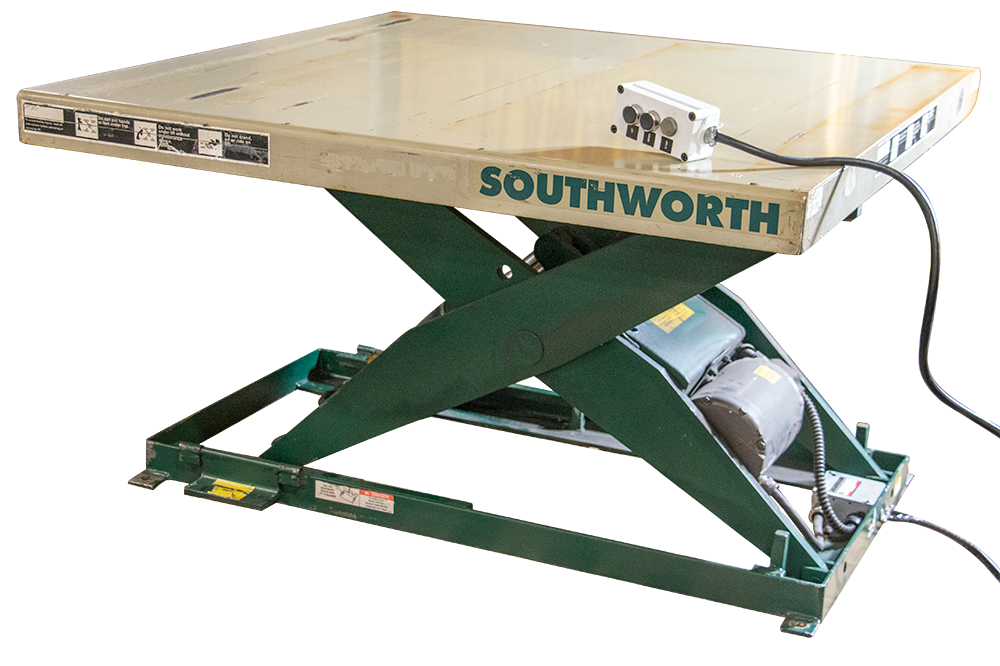

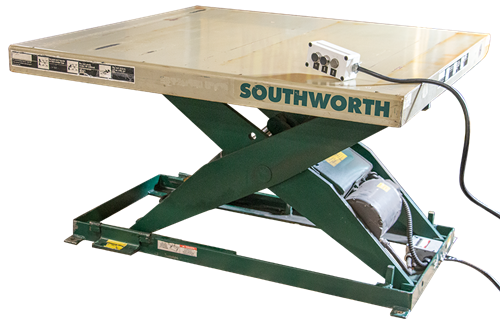

Used Southworth LS2 Backsaver Series Lift Tables

List Price:

$6,495.00

| You Save:

$3,500.00 (53.9%)

ASI Price:

$2,995.00

Request a Quote

  • Rugged, reliable lift table for work positioning, loading pallets, and other applications
  • Contoured legs for improved strength & lowered collapsed height
  • "Comfort Edge" design with no sharp corners for improved safety
  • Hardened pins w/ lifetime lubricated brushings reduce maintenance
  • Heavy-duty hoses w/ rated burst strength 600% of operating pressure
  • Clear plastic return line gives visual indication for maintenance & prevents fluid spillage during bypass
  • Low operating pressure extends life of hydraulic components
  • Flow control valve w/ lockout is locked to maximum speed per ANSI MH29.1
  • LE-0124 & LE-0125
  • Oversized Width Lift Table & 460V 3 Phase Upgrades Included! (An $899 Value!)
Capacity2,000 lbs.
Motor1 HP
Platform Size48" x 48"
Shipping WeightApprox. 630 lbs.
Base Plate Dimensions24" x 48"
BrandSouthworth

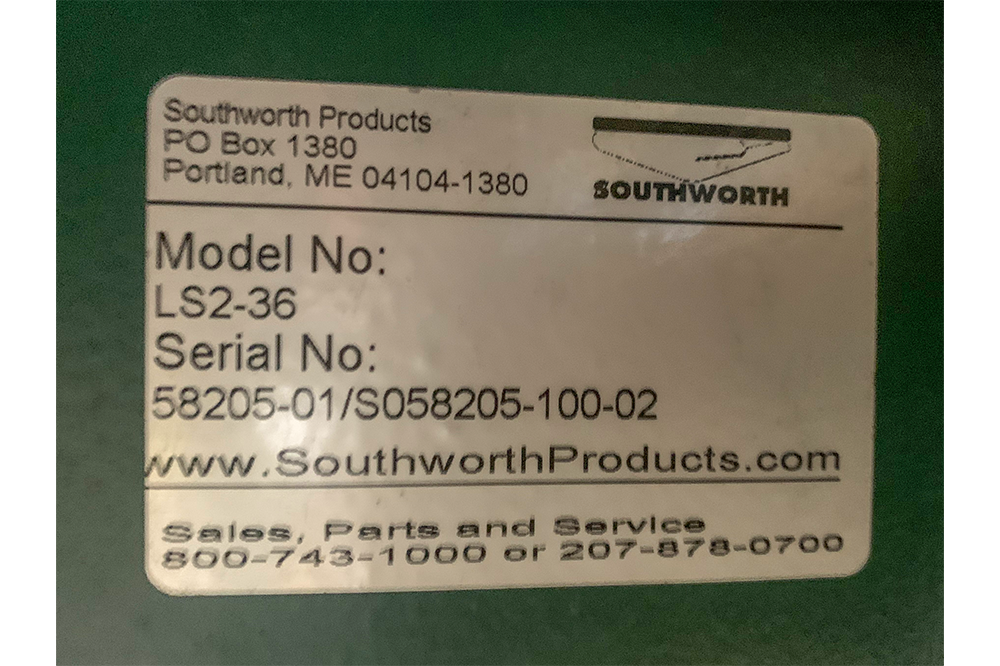

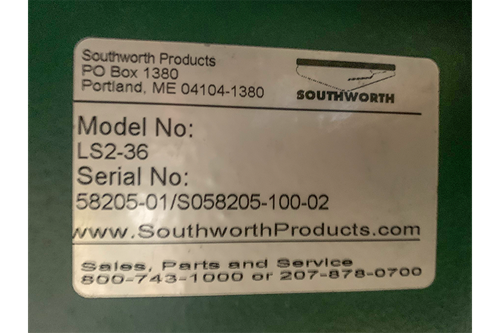

Model #LS2-36
Electrical Input Requirements480VAC, 3Ø, 60 Hz
Raised Height42.35"
Lowered Height7.25"
The Southworth LS2 Backsaver Series is designed as a rugged, reliable scissor lift table for work positioning, pallet loading, or any application where a variable height work surface is required. With extra width at the pivot point, the contoured legs offer improved strength and a lower collapsed height vs. leading competition, and the "Comfort Edge" design features no sharp corners, reducing the risk of damage or injury. All pivot points on the Southworth LS2 Backsaver feature hardended pins, operating in lifetime lubricated brushings for a virtually maintenance-free scissor lift. Heavy duty torque tubes minimize platform deflection and maximize stability, while the heavy duty hydraulic hose is rated to a burst strength 600% greater than the system's operating pressure, reducing the likelihood of hydraulic failure. A clear plastic return line from the cylinder rod bearing to the tank gives a clear visual indication of need for cylinder maintenance while preventing fluid spills in the event of a bypass. Low overall low operating pressure of the hydraulic system keeps burst risk low and maximizes the service life of the hydraulic components. Chrome-plated piston rods are corrosion-resistant and honed cylinder walls reduce wear. A built-in safety chock prevents accidental lowering of the lift table during maintenance, allowing for safe upkeep of the unit. This unit is desined and manufactured to meet or exceed ANSI MH29.1 Safety Requirements for Industrial Scissor Lifts, with a pressure compensated flow control valve with lock out preset and locked to 10 FPM maximum lowering speed. These units included an added $899 value with an oversized 48"x48" Table and 480V 3 Phase Upgrade Kit included with both units.
