Stretch Wrapper Machine

ECOPLAT Manufacturer Brochure

Performance Features:

  • FRD Control Panel has clear icons to make is straightforward to program.
  • FRD Film Carriage with Mechanical Brake is manually modified and has an indicator to show the tension setting.

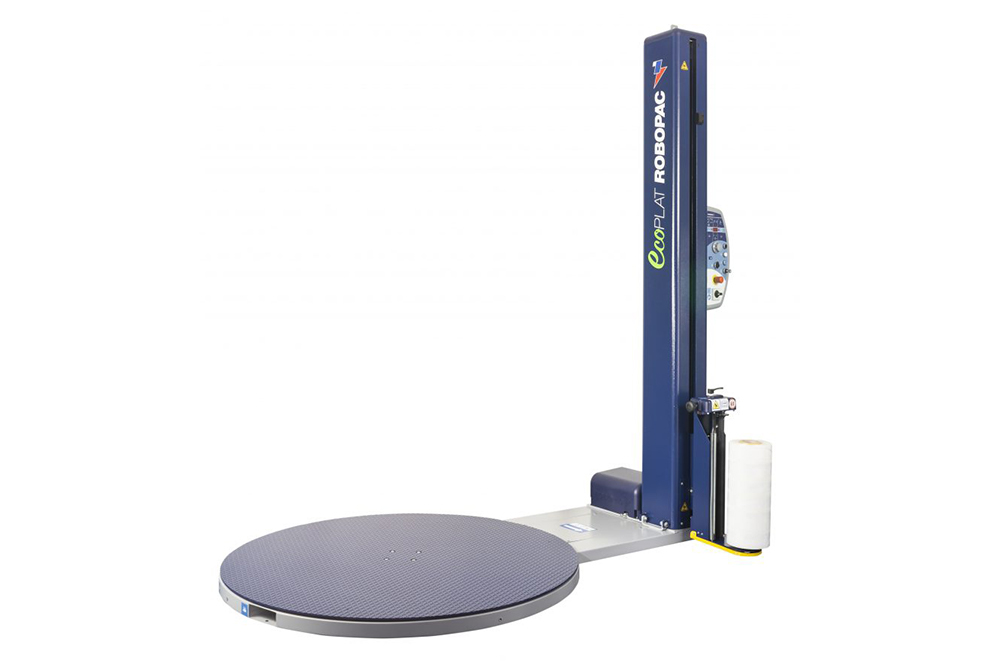

New EcoPlat Stretch Wrapper Machine

As Low As:

Call or Request Quote

Request a Quote
  • EcoPlat Semi-Automatic Stretch Wrapper Machine
  • Up to 25-loads per hour
  • Deliver 25% productivity
  • No film pre stretch
  • Friction roller drive film delivery
  • R-Connect Ready
  • Capacity: 4,400 lbs.
  • Structural reliability – 65” turntable with 28 support bearings
  • Boost throughput capabilities
  • Protect and secure items for transportation
  • Improved shipping and handling efficiencies
  • Decrease product damage
  • Increase load stability
  • Ships From Manufacturer
SKU Description BrandCapacityElectrical Input RequirementsFilm Delivery SystemFilm Pre-StretchFilm Tail SystemStretch Wrapper Wrap HeightTurntableWeight Item Price Qty.
ECOPLAT86
EcoPlat Semi-Automatic Stretch Wrapper - 86"
RoboPac4,400 lbs.120V, 1Ø, 10A, 50HzFriction Roller Drive0%None86"65" Diameter1,176 lbs.
Please request a quote
Qty:
ECOPLAT110
EcoPlat Semi-Automatic Stretch Wrapper - 110"
RoboPac4,400 lbs.120V, 1Ø, 10A, 50HzFriction Roller Drive0%None110"65" Diameter1,276 lbs.
Please request a quote
Qty:
ROBORAMP
RoboRamp for 65" Turntables
RoboPac
Please request a quote
Qty:
ROBORAMPEXT
24" Ramp Extension for RoboRamp*
Please request a quote
Qty:
ROBOINSTALL
RoboPac Stretch Wrapper Installation & Training Service
Please request a quote
Qty:
*ROBORAMPEXT must be selected when loading with powered walkies or dual walkies. Option not compatible with scale package.

The Ecoplat Semi-Automatic Turntable Stretch Wrapping Machines wrap up to 25 loads per hour increasing the throughput of your facility. This turntable shrink wrap machine has R-connect technology, which allows you to monitor and enhance your packaging performance through remote assistance. By wrapping your loads with stretch film you’ll protect them from any damaged caused by elements such as dirt, dust, and moisture, keeping your product clean and dry, but still fully visible. This semi-automatic stretch wrapper has the top performance standard features and value in its class.

American Surplus is committed to deliver our customers premium semi-automatic stretch wrapper machines. Therefore, we’ve partnered with ROBOPAC to provide the quality products our customers deserve. For more information or to request a quote call one of our sales associates today!


Specification EcoPlat 86" EcoPlat 110"
Performance
Production Speed Up to 25 LPH
Turntable Speed 4-10 RPM
Load Handling
Turntable Size 65" Diameter
Maximum Load Height 86" 110"
Maximum Load Weight 4,400 lbs.
Film Delivery System Friction Roller Drive
Standard Pre-Stretch N/A
Force-to-Load Manual
Core Compensation Core Brake
Roll Carriage Speed Variable Up & Down
Standard Film Width 20"
Load Height Detection Clear Colors Photo Eye
Safety Features
Roll Carriage Safety Stop Standard
UL & CE Compliant Yes
Anti-Fall Device Standard
Lock-Out Compliant Yes
Additional Features
Top Sheet Wrap Standard
Banding Standard
Forklift Portable Front & Rear
Machine Dimensions
Approx. Shipping Weight 1,176 lbs. 1,276 lbs.
Approx. Shipping Size 126"L x 89"W x 28"H
Service Requirements
Electric 120V, 1Ø, 10A, 50Hz
NEMA 13 Enclosure Standard
Warranty 3 Year
