Stretch Wrapper Machine

MASTERPLAT Manufacturer Brochure

Performance Features:

  • R-Connect, available for this machine was developed to provide usage and performance data via the cloud puts performance monitoring & optimization
  • Control panel combines the Master Jog Dial with graphic display with intuitive icons to make it simple to set up and to select the correct wrapping parameters for each of your loads.
  • The PGS film carriage is fixed gear 250% power pre-stretch and the force to load (tension) is controlled by a strain gauge, adjusted on the control panel.
  • Low thickness basement compatible with the Masterplat and Rotoplat range. Manage an easy loading with manual transpallet.

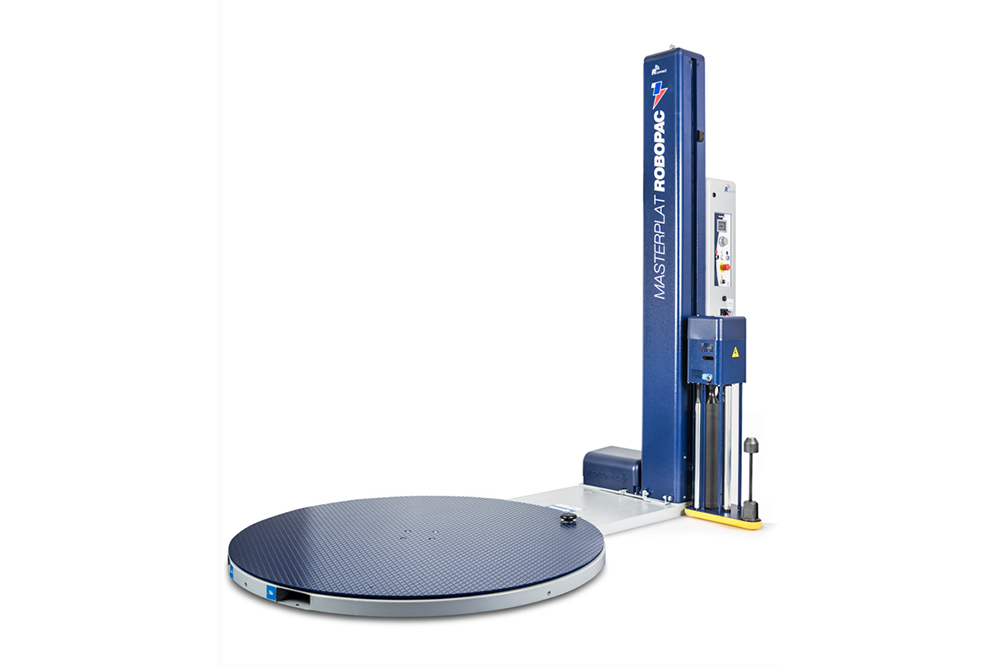

New MasterPlat Stretch Wrapper Machine

As Low As:

Call or Request Quote

Request a Quote
  • MASTERPLAT Semi-Automatic Stretch Wrapper Machine
  • Up to 30-loads per hour
  • Fixed film pre stretch at 250%
  • Power gear stretch film delivery
  • R-Connect Ready
  • Capacity: 4,400 lbs.
  • Turntable is supported by 28 heavy-duty casters
  • Turntable speed: 5-12 rpm
  • Eliminate downtime by troubleshooting your machine
  • Remote machine monitoring and film consumption tracking
  • Ships From Manufacturer

SKU Description BrandCapacityElectrical Input RequirementsFilm Delivery SystemFilm Pre-StretchFilm Tail SystemIncludes R-Connect?Stretch Wrapper Wrap HeightTurntableWeight Item Price Qty.
MASTERPLAT86
MasterPlat Semi-Automatic Stretch Wrapper - 86"
RoboPac4,400 lbs.120V, 1Ø, 20A, 60HzPower Gear Stretch250%NoneNo86"65" Diameter1,395 lbs.
Please request a quote
Qty:
MASTERPLAT110
MasterPlat Semi-Automatic Stretch Wrapper - 110"
RoboPac4,400 lbs.120V, 1Ø, 20A, 60HzPower Gear Stretch250%NoneNo110"65" Diameter1,395 lbs.
Please request a quote
Qty:
ROBORAMP
RoboRamp for 65" Turntables
RoboPac
Please request a quote
Qty:
ROBORAMPEXT
24" Ramp Extension for RoboRamp*
Please request a quote
Qty:
ROBOINSTALL
RoboPac Stretch Wrapper Installation & Training Service
Please request a quote
Qty:
*ROBORAMPEXT must be selected when loading with powered walkies or dual walkies. Option not compatible with scale package.

MASTERPLAT Semi-Automatic Stretch Wrapper Machine are easy to install and operate. This wrapper comes with productivity improving standards like a Self-Learning Wrap Program. The turntable has a 4,400 lb. capacity with a production rate up to 30 loads per hour.

Equipped with standard safety features like a Roll Carriage Anti Fall Device & Roll Carriage Safety Stop, and a 65″ diameter diamond plated steel turntable that stops your load from shifting during the wrapping process. It accommodates the standard 40″ X 48″ pallet decreasing the threat of product damage or worker injury from overhang.

American Surplus is committed to deliver our customers premium semi-automatic stretch wrapper machines. Therefore, we’ve partnered with ROBOPAC to provide the quality products our customers deserve. For more information or to request a quote call one of our sales associates today!




Specification MasterPlat 86" MasterPlat 110"
Performance
Production Speed Up to 30 LPH
Turntable Speed 5-12 RPM
Load Handling
Turntable Size 65" Diameter
Maximum Load Height 86" 110"
Maximum Load Weight 4,400 lbs.
Film Delivery System Power Gear Stretch
Standard Pre-Stretch 250%
Force-to-Load Variable 0%-100%
Core Compensation Load Cell
Roll Carriage Speed Variable Up & Down
Standard Film Width 20"
Load Height Detection Infrared Photo Eye (Dark Colors)
Safety Features
Roll Carriage Safety Stop Standard
UL & CE Compliant Yes
Anti-Fall Device Standard
Lock-Out Compliant Yes
Additional Features
Top Sheet Wrap Standard
Banding Standard
Forklift Portable Front & Rear
Machine Dimensions
Approx. Shipping Weight 1,395 lbs.
Approx. Shipping Size 126"L x 89"W x 28"H
Service Requirements
Electric 120V, 1Ø, 20A, 60Hz
NEMA 13 Enclosure Standard
Warranty 3 Year
