Stretch Wrapper

ROTOPLAT 708 Manufacturer Brochure

Performance Features:

  • R-Connect, available for any stretch wrap machine provides usage and performance data via the cloud, enabling you to meet Industry 4.0 demands by putting performance monitoring & optimization at your fingertips.
  • The high performance 7-inch color touch screen with icons specifically designed and created by Robopac has led to the implementation of the MULTILEVEL CONTROL function for stretch wrap machines.
  • Powered stretch system controlled by two motors. Stretch ratio adjustable from panel board from 150-400%.

New RotoPlat 708 Stretch Wrapper Machines

As Low As:

Call or Request Quote

Request a Quote

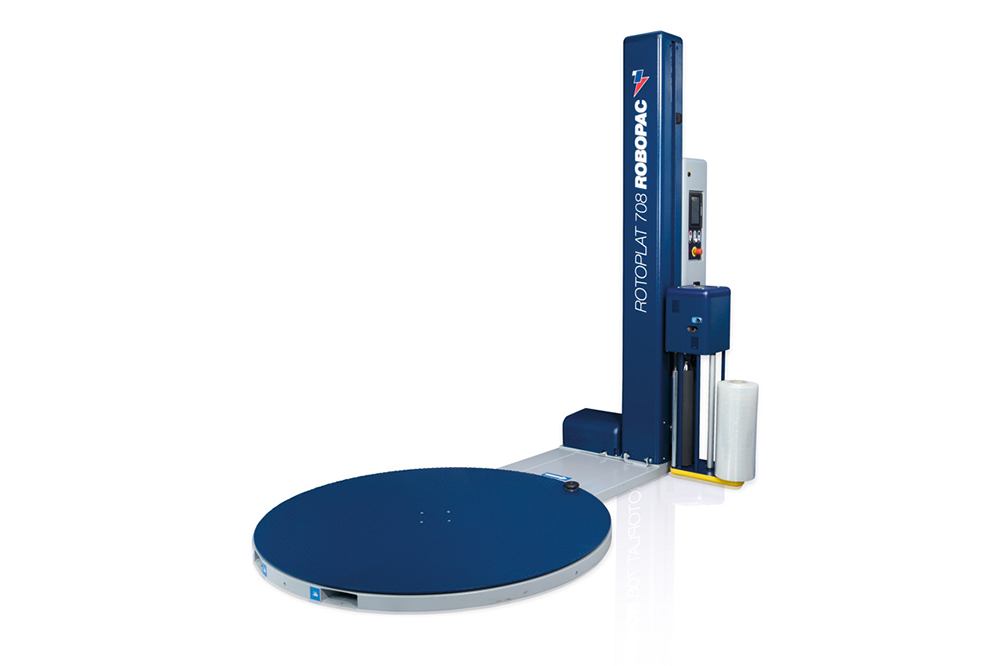

  • ROTOPLAT 708 Stretch Wrapper by RoboPac
  • Up to 30-loads per hour
  • Variable film pre stretch 150%-400%
  • Power variable stretch film delivery
  • Supports R-Connect ONLY on 110" RotoPlat 708
  • Capacity: 4,400 lbs.
  • Reduces film costs 30-55%
  • 65” turntable with 28 support bearings
  • Improves load containment
  • Reduces product damage by 40%
  • Easy to install and operate
  • Eliminate downtime by troubleshooting your machines
  • Remote machine monitoring and film consumption tracking
  • Ships From Manufacturer

SKU Description BrandCapacityElectrical Input RequirementsFilm Delivery SystemFilm Pre-StretchFilm Tail SystemIncludes R-Connect?Stretch Wrapper Wrap HeightTurntableWeight Item Price Qty.
ROTOPLAT86
Rotoplat 708 Semi-Automatic Stretch Wrapper - 86"
RoboPac4,400 lbs.120V, 1Ø, 12A, 60HzPower Variable StretchVariable 150% - 400%NoneNo86"65" Diameter1,500 lbs.
Please request a quote
Qty:
ROTOPLAT110
Rotoplat 708 Semi-Automatic Stretch Wrapper w/ R-Connect - 110"
RoboPac4,400 lbs.120V, 1Ø, 12A, 60HzPower Variable StretchVariable 150% - 400%NoneYes110"65" Diameter1,500 lbs.
Please request a quote
Qty:
ROBOINSTALL
RoboPac Stretch Wrapper Installation & Training Service
Please request a quote
Qty:

The Rotoplat 708 with CUBE Technology is the most innovative stretch wrapper in the market. It is also the easiest to use, thanks to its intuitive seven (7) inch color touchscreen. By using this innovative stretch wrapper you’ll save 30-50% of film thanks to Cube Technology.

The Rotoplat 708’s patented roll carriage design combined with the ultimate flexibility of CUBE Technology allows you to wrap any load with any film with total confidence. The Multi-Level Variable Containment is optimized at each level. Containment force is adjustable up to 9X on each load.

CUBE Technology will cuut your film usage by 30% – 55% and possible product damage up to 40%. This guarantees that your load gets your customer in “as-made” condition by maintaining correct wrapping standards.

American Surplus is committed to deliver our customers premium semi-automatic stretch wrapper machines. Therefore, we’ve partnered with ROBOPAC to provide the quality products our customers deserve. For more information or to request a quote call one of our sales associates today!


Specification RotoPlat 708 RotoPlat 708 w/ R-Connect
R-Connect No 3 Year Plan of Remote Machine Monitoring and Film Consumption Tracking Included
Performance
Production Speed Up to 30 LPH
Turntable Speed 5-12 RPM
Load Handling
Turntable Size 65" Diameter
Maximum Load Height 86" 110"
Maximum Load Weight 4,400 lbs.
Film Delivery System Power Variable Stretch
Standard Pre-Stretch Variable 150%-400%
Force-to-Load Variable Electronic 0%-100%
Core Compensation Load Cell
Roll Carriage Speed Variable Up & Down
Standard Film Width 20"
Load Height Detection Infrared Photocell
Safety Features
Roll Carriage Safety Stop Standard
UL, cUL, & CE Compliant Yes
Anti-Fall Device Standard
Lock-Out/Tag-Out Compliant Yes
Additional Features
Top Sheet Wrap Standard
Banding Standard
Forklift Portable Front & Rear
Machine Dimensions
Approx. Shipping Weight 1,500 lbs.
Approx. Shipping Size 126"L x 89"W x 28"H
Service Requirements
Electric 120V, 1Ø, 12A, 60Hz
NEMA 13 Enclosure Standard
Warranty 5 Year
